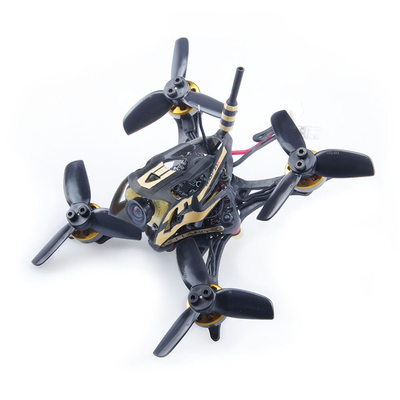

GEELANG WASP 85X 2 Inch 2S Toothpick FPV Racing Drone BNF / PNP F4
Flight Controller 1202 8700KV Motor 800TVL Cam
GEELANG WASP 85X 2 Inch 2S Toothpick FPV Racing Drone BNF / PNP F4 Flight Controller 1202 8700KV Motor 800TVL CamSpecificationsBrand Name: GeelangItem Name: WASP85X WhoopWheelbase: 85mmSize: 108mm *108mm * 61mmWeight: 41g (without battery)Weight: 57g(with Original 2s 300mah 30/60C Lipo battery)Flight ControllerFlight controller: Play F4 WhoopVersion: F411CEU6MCU: STM32F411CEU6 (100MHZ, 512K FLASH)Sensor: MPU-6000(SPI connection)Board Size: 28.5 * 28.5MMPower Supply: 1-2S battery input (DC 3.2-8.4V)Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 readyBuilt-in Betaflight OSD(SPI Control)Built-in 5V 2A BECBuilt-in voltage detectionOnboard 4in1 ESC MCU upgraded to EFM8BB21Power supply: 1-2S LiPo/LiPo HV (3.2v/8.4v)Current: 5A continuous peak 7A (5 seconds)Support BLHeliSuite programmable Factory
firmware: S_H_50_REV16_7.HEXDefault protocol: DSHOT600MotorSpare parts specifications:Motor Mode:GL1202 KV8700No.of Cells(Lipo):1S-3SStator specifications:D12 * H2 0.2mmConfigu-ration:9N12PStator Diamter:12mmStator Length:2mmShaft Diameter:Φ1.5mm. Motor Dimension(Dia.*Len):Φ13.8mm*15.5mmMagent specifications: N52HShift specifications: 2mm High strength steelBearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom madeWinding Specifications: 180℃ Class Multiple oxygen-free copper Weight(g):3.7g5.8g VTX TransmitterVTX Output power:25~200mw switchableFrequency:40CHInput voltage: 3.2V- 5.2VCurrent consumption: 320mA(type)Power switching: third gear(25MW 、 100MW 、200MW)Antenna: RG178s antennaFr
firmware: S_H_50_REV16_7.HEXDefault protocol: DSHOT600MotorSpare parts specifications:Motor Mode:GL1202 KV8700No.of Cells(Lipo):1S-3SStator specifications:D12 * H2 0.2mmConfigu-ration:9N12PStator Diamter:12mmStator Length:2mmShaft Diameter:Φ1.5mm. Motor Dimension(Dia.*Len):Φ13.8mm*15.5mmMagent specifications: N52HShift specifications: 2mm High strength steelBearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom madeWinding Specifications: 180℃ Class Multiple oxygen-free copper Weight(g):3.7g5.8g VTX TransmitterVTX Output power:25~200mw switchableFrequency:40CHInput voltage: 3.2V- 5.2VCurrent consumption: 320mA(type)Power switching: third gear(25MW 、 100MW 、200MW)Antenna: RG178s antennaFr
