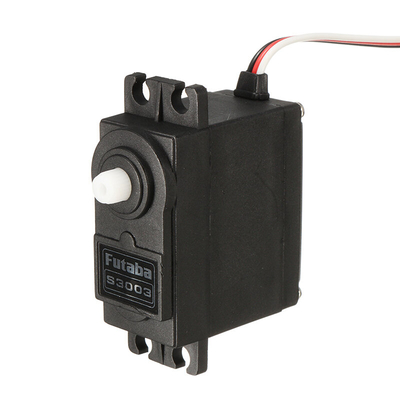

Note It is the upgrade version. Not the same shape as the old one. Features Genuine Futaba 37.2g servos are your easiest & most efficient way to upgrade your Futaba system. No other system provides you access to as many different sizes, shapes & functions as Futaba. The performance & reliability of our servos have made them the favorite choice of professionals including top RC competition specialists & motion picture special effect artists.SMT Contruction
- Surface Mount Technology improves reliability in applications where there is vibration Impact Resistant, Fuelproof Case
- High impact plastic is designed to withstand minor crashes & the effects of model fuel Through-the-hole Circuit Board Plating
- Eliminates the need for wires or leads Heavy Duty Output Shaft
- Designed not to break, & offers versatility when installing the servo horn Nylon gears Specifications: Speed:0.23 sec/60 @ 4.8V; 0.19 sec/60 @ 6 V Torque:44 oz-in (3.2 kg-cm) @ 4.8V; 57 oz-in (4.1 kg-cm) @ 6 V Dimensions:1.6 x 0.8 x 1.4 in (1-9/16 x 13/16 x 1-7/16 in) (40 x 20 x 36 mm) Weight:1.3 oz (37 g) Connector:J type with approx. 5 in lead Package:1x S3003 standard servo 4x Brass eyelets 4x Black rectangular rubber grommets 4x Servo mount screws (4)1x Servo wheel 1.375 in (35 mm) in diameter 1x X-shape servo arm 1.5 in (38 mm) across 1x Star shaped arm 1.25 in (32 mm) across
