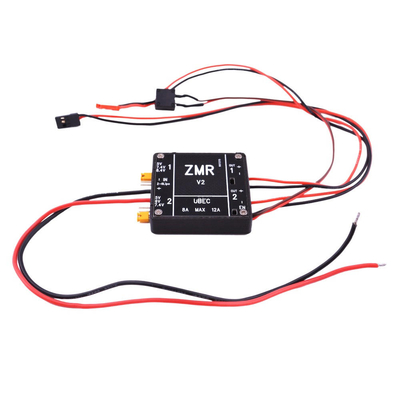

ZMR 8A UBEC V1 V2 V3 BEC Input Voltage 2-6S Lipo/4-8S BEC For RC FPV
Drone Quadcopter
Specification:8A UBEC V1:1. Input voltage: 2-6S Lipo (7-25.5V).2. Output voltage: One way 7.4V fixed output.Another way 5V/6V/7.4V is optional.3. Continuous output current: 8A4. Peak output current: 12A (duration not exceeding 15 seconds)5. Input wire: No. 16 silica gel wire, length 30CMOutput wire: No. 22 multi-core silica gel wire, length 30CM6. Size: 50X50X11.5mm7. Weight: 50g8A UBEC V2:1. Input voltage: 2-6S Lipo (7-25.5V).2. Output voltage: One way 5V/7.4V/8.4V is optionalAnother way 5V/6V/7.4V is optional.3. Continuous output current: 8A4. Peak output current: 12A (duration not exceeding 15 seconds)5. Input wire: No. 16 silica gel wire, length 30CMOutput wire: 22 multi-core silica gel wire, length 30CM6. Size: 50X50X11.5mm7. Weight: 50g8A UBEC V3:1. Input voltage: 4-8S LiPo
(15-36V).2. Output voltage: One way 12V fixed output.Another way 5.2V/6V/7.4V/8.4 route is optional.3. Output Current: 5.2-8.4V: 8A Instantaneous 16A12V: Continuous 4A Instantaneous 6A4. Input wire: No. 16 silica gel wire, length 30CMOutput wire: 22 multi-core silica gel wire, length 30CM5. Size: 49X46X11.5mm6. Weight: 50gFeatures:1. The advanced synchronous rectifier chip has the function of over-current and over-heat protection, and the conversion efficiency is over 93%.2. High quality conversion chip greatly reduces electromagnetic interference. Ensure the normal operation of the receiver.3. It has a working state indicator. When the output is normal, the indicator is always on.4. It has an extern
(15-36V).2. Output voltage: One way 12V fixed output.Another way 5.2V/6V/7.4V/8.4 route is optional.3. Output Current: 5.2-8.4V: 8A Instantaneous 16A12V: Continuous 4A Instantaneous 6A4. Input wire: No. 16 silica gel wire, length 30CMOutput wire: 22 multi-core silica gel wire, length 30CM5. Size: 49X46X11.5mm6. Weight: 50gFeatures:1. The advanced synchronous rectifier chip has the function of over-current and over-heat protection, and the conversion efficiency is over 93%.2. High quality conversion chip greatly reduces electromagnetic interference. Ensure the normal operation of the receiver.3. It has a working state indicator. When the output is normal, the indicator is always on.4. It has an extern
