. The Br&-X Twist Lever Thru Axle design is constructed from durable materials & made to manufacturers exact specifications; these Thru Axles from Br&-X are a reliable & competitively priced alternative to your fork or frame's original Optimised Lever Design. Unlike the common/standard bolt-thru axle, the Br&-X version has an easy to use, solid twist lever. There's no need to twist & back off to get a clamping mechanism working, simply twist the lever until your wheel is solidly locked in place. The lever sits on splines & can engaged/disengaged to set the lever in your desired position once tightened in place. Available in a range of sizes, Br&-X has produced these twist lever thru-axles in the most commonly seen lengths & thread pitches Note: It is recommended to precisely measure the

Dimensions of your existing thru-axle before ordering, see the dimension table below

Features:
Material: AL7075 Aluminium  CNC Precision engineered   Engage/ disengage twist lever   Hollow for weight saving  6mm Allen hey head at the bolt end for 2-way adjustment Specifications:   Option 1: For solid road/gravel/cyclocross forks that use the Shimano E-Thru 12x 100mm axle standard with an M12x 1.5 thread pitch.   Options 2 & 3: For frames with the 142x 12mm axle standard & that use the Shimano E-Thru 12mm axle standard with an M12x 1.5 thread pitch. There are two length options as some frames have thicker dropouts.   Option 4: For frames with the 142x 12mm axle standard & that use the SRAM 12mm thru axle with the M12x 1 75 thread pitch.   Option 5: For frames with the “ Boost” 148x 12mm axle standard & that use the SRAM 12mm thru axle with the M12x 1 75 thread pitch.   Option 6: For standard Rock Shox suspension forks with the 15x 100mm axle standard & that use the “ Maxle” system with an M15x 1.5 thread pitch.   Option 7: For the “ Boost” version of   Rock Shox suspension forks with the 15x 110mm axle standard & that also use the “ Maxle” system with an M15x 1.5 thread pitch.   Option 8: For Fox Suspension forks with the standard 15x 110mm axle standard that use the “ Kabolt” system with an M14x 1.5 thread pitch Dimensions:                     Option         Type         Hub Size         Length         Thread Length         Thread Pitch         Weight                    1        E-Thru        12x 100mm        125mm        17mm        M12x 1.5        60g                    2        E-Thru        12x 142mm        166mm        17mm        M12x 1.5        73g                    3        E-Thru        12x 142mm        170mm        17mm        M12x 1.5        75g                    4        SRAM        12x 142mm        172mm        20mm        M12x 1 75        70g                    5        SRAM        12x 148mm        180mm        20mm        M12x 1 75        78g                    6         Rock Shox        15x 100mm        146mm        11mm        M15x 1.5        92g                    7         Rock Shox        15x 110mm        158mm        11mm        M15x 1.5        98g                    8         Fox Kabolt        15x 110mm        146mm        13mm        M14x 1.5        91g                    9         Fox Kabolt        15x 110mm        156mm        13mm        M14x 1.5        96g             Buy Br&-X Wheels & Tyres from Chain Reaction Cycles, the World's Largest Online Bike Store.




...

. The Br&-X Twist Lever Thru Axle design is constructed from durable materials & made to manufacturers exact specifications; these Thru Axles from Br&-X are a reliable & competitively priced alternative to your fork or frame's original Optimised Lever Design. Unlike the common/standard bolt-thru axle, the Br&-X version has an easy to use, solid twist lever. There's no need to twist & back off to get a clamping mechanism working, simply twist the lever until your wheel is solidly locked in place. The lever sits on splines & can engaged/disengaged to set the lever in your desired position once tightened in place. Available in a range of sizes, Br&-X has produced these twist lever thru-axles in the most commonly seen lengths & thread pitches Note: It is recommended to precisely measure the

Dimensions of your existing thru-axle before ordering, see the dimension table below

Features:
Material: AL7075 Aluminium  CNC Precision engineered   Engage/ disengage twist lever   Hollow for weight saving  6mm Allen hey head at the bolt end for 2-way adjustment Specifications:   Option 1: For solid road/gravel/cyclocross forks that use the Shimano E-Thru 12x 100mm axle standard with an M12x 1.5 thread pitch.   Options 2 & 3: For frames with the 142x 12mm axle standard & that use the Shimano E-Thru 12mm axle standard with an M12x 1.5 thread pitch. There are two length options as some frames have thicker dropouts.   Option 4: For frames with the 142x 12mm axle standard & that use the SRAM 12mm thru axle with the M12x 1 75 thread pitch.   Option 5: For frames with the “ Boost” 148x 12mm axle standard & that use the SRAM 12mm thru axle with the M12x 1 75 thread pitch.   Option 6: For standard Rock Shox suspension forks with the 15x 100mm axle standard & that use the “ Maxle” system with an M15x 1.5 thread pitch.   Option 7: For the “ Boost” version of   Rock Shox suspension forks with the 15x 110mm axle standard & that also use the “ Maxle” system with an M15x 1.5 thread pitch.   Option 8: For Fox Suspension forks with the standard 15x 110mm axle standard that use the “ Kabolt” system with an M14x 1.5 thread pitch Dimensions:                     Option         Type         Hub Size         Length         Thread Length         Thread Pitch         Weight                    1        E-Thru        12x 100mm        125mm        17mm        M12x 1.5        60g                    2        E-Thru        12x 142mm        166mm        17mm        M12x 1.5        73g                    3        E-Thru        12x 142mm        170mm        17mm        M12x 1.5        75g                    4        SRAM        12x 142mm        172mm        20mm        M12x 1 75        70g                    5        SRAM        12x 148mm        180mm        20mm        M12x 1 75        78g                    6         Rock Shox        15x 100mm        146mm        11mm        M15x 1.5        92g                    7         Rock Shox        15x 110mm        158mm        11mm        M15x 1.5        98g                    8         Fox Kabolt        15x 110mm        146mm        13mm        M14x 1.5        91g                    9         Fox Kabolt        15x 110mm        156mm        13mm        M14x 1.5        96g             Buy Br&-X Wheels & Tyres from Chain Reaction Cycles, the World's Largest Online Bike Store.




...

. The Br&-X Twist Lever Thru Axle design is constructed from durable materials & made to manufacturers exact specifications; these Thru Axles from Br&-X are a reliable & competitively priced alternative to your fork or frame's original Optimised Lever Design. Unlike the common/standard bolt-thru axle, the Br&-X version has an easy to use, solid twist lever. There's no need to twist & back off to get a clamping mechanism working, simply twist the lever until your wheel is solidly locked in place. The lever sits on splines & can engaged/disengaged to set the lever in your desired position once tightened in place. Available in a range of sizes, Br&-X has produced these twist lever thru-axles in the most commonly seen lengths & thread pitches Note: It is recommended to precisely measure the

Dimensions of your existing thru-axle before ordering, see the dimension table below

Features:
Material: AL7075 Aluminium  CNC Precision engineered   Engage/ disengage twist lever   Hollow for weight saving  6mm Allen hey head at the bolt end for 2-way adjustment Specifications:   Option 1: For solid road/gravel/cyclocross forks that use the Shimano E-Thru 12x 100mm axle standard with an M12x 1.5 thread pitch.   Options 2 & 3: For frames with the 142x 12mm axle standard & that use the Shimano E-Thru 12mm axle standard with an M12x 1.5 thread pitch. There are two length options as some frames have thicker dropouts.   Option 4: For frames with the 142x 12mm axle standard & that use the SRAM 12mm thru axle with the M12x 1 75 thread pitch.   Option 5: For frames with the “ Boost” 148x 12mm axle standard & that use the SRAM 12mm thru axle with the M12x 1 75 thread pitch.   Option 6: For standard Rock Shox suspension forks with the 15x 100mm axle standard & that use the “ Maxle” system with an M15x 1.5 thread pitch.   Option 7: For the “ Boost” version of   Rock Shox suspension forks with the 15x 110mm axle standard & that also use the “ Maxle” system with an M15x 1.5 thread pitch.   Option 8: For Fox Suspension forks with the standard 15x 110mm axle standard that use the “ Kabolt” system with an M14x 1.5 thread pitch Dimensions:                     Option         Type         Hub Size         Length         Thread Length         Thread Pitch         Weight                    1        E-Thru        12x 100mm        125mm        17mm        M12x 1.5        60g                    2        E-Thru        12x 142mm        166mm        17mm        M12x 1.5        73g                    3        E-Thru        12x 142mm        170mm        17mm        M12x 1.5        75g                    4        SRAM        12x 142mm        172mm        20mm        M12x 1 75        70g                    5        SRAM        12x 148mm        180mm        20mm        M12x 1 75        78g                    6         Rock Shox        15x 100mm        146mm        11mm        M15x 1.5        92g                    7         Rock Shox        15x 110mm        158mm        11mm        M15x 1.5        98g                    8         Fox Kabolt        15x 110mm        146mm        13mm        M14x 1.5        91g                    9         Fox Kabolt        15x 110mm        156mm        13mm        M14x 1.5        96g             Buy Br&-X Wheels & Tyres from Chain Reaction Cycles, the World's Largest Online Bike Store.




...

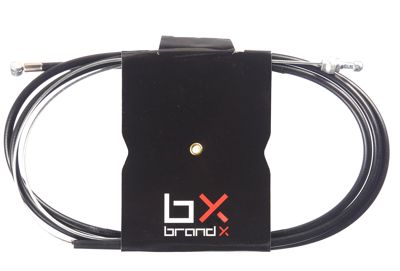

Br&-X Universal Brake Cable & Outer Kit Tough, high quality universal inner & outer brake cable kit from Br&-X. Perfect for MTB or Road use

Features: 1 x uncut galvanised steel universal inner brake cable
- 2000mm long 1 x outer brake cable
- 1400mm long Buy Br&-X Components from Chain Reaction Cycles, the World's Largest Online Bike Store.



...

Br&-X Universal Galvanised Brake Cable Tough, high quality universal galvanised inner brake cable from Br&-X. Perfect for MTB or Road use

Features: 1 x galvanised steel universal inner brake cable
- 2000mm long Buy Br&-X Components from Chain Reaction Cycles, the World's Largest Online Bike Store.


...

Br&-X V-Brake Guide Pipe with Boot This tough, high quality V-Brake guide pipe/brake noodle is constructed of stainless steel, with a PTFE liner for smooth, long-lasting use. A rubber boot is included for added durability

Features: Tough, high quality stainless steel with PTFE inner

Includes:: rubber boot For use with V-Brakes Available with 90 or 135 degree bend Buy Br&-X Components from Chain Reaction Cycles, the World's Largest Online Bike Store.



...

Br&-X V-Brake Guide Pipe with Boot This tough, high quality V-Brake guide pipe/brake noodle is constructed of stainless steel, with a PTFE liner for smooth, long-lasting use. A rubber boot is included for added durability

Features: Tough, high quality stainless steel with PTFE inner

Includes:: rubber boot For use with V-Brakes Available with 90 or 135 degree bend Buy Br&-X Components from Chain Reaction Cycles, the World's Largest Online Bike Store.



...

Br&-X Women's Comfort Saddle. The Br&-X Ladies Comfort saddle is a great quality, value & performance saddle which has been ...

Br&-X Women's Cut Out Saddle. The Br&-X Ladies Cut Out saddle is a great quality, value & performance saddle for female XC, ...

Br&-X Mk III X Elbow & Forearm Guards Phenomenal value elbow/forearm pad set packed with features at an amazing price. These ...
