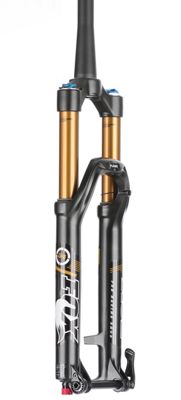

Fox Suspension 34 Float 150 CTD w/ Trail Adjust Forks 2013 Float forks are air mountain bike suspension forks for everything from XC racing to flying at the bike park—super-light & durable. Specifications: Weight: 2.3kg (1.5" taper steerer) 15QR (
Includes: axle) Travel: 150 mm Steerer: 1 1/8"-1.5" tapered aluminium Stanchions: Kashima Coat Adjustments: Climb/ Trail/ Descend (3 positions), Trail adjust tuning range (1, 2, 3), Rebound Adjust Climb Tune: M Spring: Air spring pressure Lowers: 15mm QR lowers Technologies: CTD: Climb. Trail. Descend. CTD is the integrated ride dynamics system that makes it easy to set up your fork & shock to work together for unprecedented performance in all types of terrain. Its intuitive to use & can be instantly activated while riding. Just select one of three modes — Climb, Trail, or Descend — via a single remote lever or individual component levers. Complementing the CTD system is our new D.O.S.S. height
...

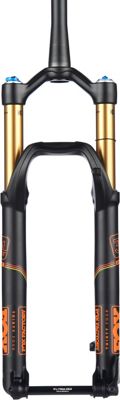

Fox Suspension 34 Float FIT4 3 Pos Factory Forks The Fox Suspension 34 Float FIT4 3 Pos Factory Forks are ideal for aggressive Trail & All Mountain riding. They adopt the same technologies as seen on the longer travel 36 Float models & feature the CTD (climb/trail/descend) 3-position damper. This enables you to quickly alter how the fork reacts, for optimum trail performance in every situation Boost Your Grip, Fine-Tune Your Preference Designed for plus sized trail bikes, these forks are compatible with 110mm " Boost" hubs, which results in a stiffer & more responsive front end & clearance for up to 3.25" tyres. They also feature Fox Suspension's "FIT4" damper, which gives you 22 clicks of adjustment so you can obtain the perfect setup for the trail you're riding

Features: Adjustments: Firm/medium/open (3 positions), low-speed compression (22 clicks), rebound adjust, air spring pressure Kashima coated stanchions Damping: CTD & FIT4 cartridge system Steerer Diameter: 1.1/8"-1 5" Tapered Travel: 140mm Axle option: 15x 110mm Boost Maximum Tyre

Size: 27.5"x 3 25" Key Technologies: CTD (Climb/ Trail/ Descend):  Fox's integrated ride dynamics system that makes it easy to set up your fork & shock to work together for unprecedented performance in all types of terrain. It's intuitive to use & can be instantly activated while riding. Just select one of three modes, Climb, Trail, or Descend FIT4 (FOX Isolated Technology):  Air & oil do mix, & in the world of suspension, it degrades performance. Fox's isolation technology employs a bladder system that simply keeps the oil & air from mixing to provide optimal performance in all riding extremes. It has been updated to provide even more sensitivity whilst maintaining support 15QR:  Don't sacrifice performance by going with a pinner skewer Buy  Fox Suspension Forks from Chain Reaction Cycles, the World's Largest Online Bike Store.



...

Fox Suspension 34 Float Performance E-Bike+ Grip Fork Engineered for E-MTB adventures, this off-road fork gives you smooth front end suspension & control on every ride. It features a Float EVOL air spring as well as a FIT GRIP damper with three positions of compression adjustment. This makes it absolutely ideal for accompanying you on your mountain travels, as it means that you can easily adjust its sensitivity via a lever. Fox Suspension has also equipped tihs model with rebound & air pressure adjustment for even greater shock absorption on your E-bike.
Features: Steerer Tube

Material: Aluminium Crown

Material: Aluminium Stanchion Tube

Material: Aluminium Lower Tube

Material: Magnesium Upper Leg Finish: Anodised Use: E-MTB only Air Spring: Float EVOL Damper: FIT GRIP Adjustment: 3-position compression (Open, Medium & Firm modes), Rebound, air pressure adjust Steerer: 1 1/8-1.5" tapered Axle: 15x 110mm QR Brake Mount: Disc PM 6" (160mm direct mount) Stanchion Tube Diameter: 34mm Offset: Multiple options available Travel: 140mm Remote Operated: No Lever Operated: Yes Lockout: No Part Numbers: 29", 51mm Offset: 910-20-963; 29", 44mm Offset: 910-20-962; 27.5", 44mm Offset: 910-20-964 Buy Fox Suspension Components from Chain Reaction Cycles, the World's Largest Online Bike Store.








...

Fox Suspension 34 Float Performance E-Bike+ Grip Fork Engineered for E-MTB adventures, this off-road fork gives you smooth front end suspension & control on every ride. It features a Float EVOL air spring as well as a FIT GRIP damper with three positions of compression adjustment. This makes it absolutely ideal for accompanying you on your mountain travels, as it means that you can easily adjust its sensitivity via a lever. Fox Suspension has also equipped tihs model with rebound & air pressure adjustment for even greater shock absorption on your E-bike.
Features: Steerer Tube

Material: Aluminium Crown

Material: Aluminium Stanchion Tube

Material: Aluminium Lower Tube

Material: Magnesium Upper Leg Finish: Anodised Use: E-MTB only Air Spring: Float EVOL Damper: FIT GRIP Adjustment: 3-position compression (Open, Medium & Firm modes), Rebound, air pressure adjust Steerer: 1 1/8-1.5" tapered Axle: 15x 110mm QR Brake Mount: Disc PM 6" (160mm direct mount) Stanchion Tube Diameter: 34mm Offset: Multiple options available Travel: 140mm Remote Operated: No Lever Operated: Yes Lockout: No Part Numbers: 29", 51mm Offset: 910-20-963; 29", 44mm Offset: 910-20-962; 27.5", 44mm Offset: 910-20-964 Buy Fox Suspension Components from Chain Reaction Cycles, the World's Largest Online Bike Store.








...

Fox Suspension 34 Float Performance E-Bike+ Grip Fork Engineered for E-MTB adventures, this off-road fork gives you smooth front end suspension & control on every ride. It features a Float EVOL air spring as well as a FIT GRIP damper with three positions of compression adjustment. This makes it absolutely ideal for accompanying you on your mountain travels, as it means that you can easily adjust its sensitivity via a lever. Fox Suspension has also equipped tihs model with rebound & air pressure adjustment for even greater shock absorption on your E-bike.
Features: Steerer Tube

Material: Aluminium Crown

Material: Aluminium Stanchion Tube

Material: Aluminium Lower Tube

Material: Magnesium Upper Leg Finish: Anodised Use: E-MTB only Air Spring: Float EVOL Damper: FIT GRIP Adjustment: 3-position compression (Open, Medium & Firm modes), Rebound, air pressure adjust Steerer: 1 1/8-1.5" tapered Axle: 15x 110mm QR Brake Mount: Disc PM 6" (160mm direct mount) Stanchion Tube Diameter: 34mm Offset: Multiple options available Travel: 140mm Remote Operated: No Lever Operated: Yes Lockout: No Part Numbers: 29", 51mm Offset: 910-20-963; 29", 44mm Offset: 910-20-962; 27.5", 44mm Offset: 910-20-964 Buy Fox Suspension Components from Chain Reaction Cycles, the World's Largest Online Bike Store.








...

Fox Suspension 34 Float Performance Elite Fit 4 Fork Designed to be the ultimate trail companion, this MTB fork features a Float EVOL air spring as well as a FIT4 damper for exceptional shock absorption & control. Giving you three positions of adjustable compression plus, rebound & air pressure adjustment, this fork means that you can customise its damping to suit your riding style as well as the terrain. Fox Suspension has also equipped this Performance Series model with a hard-wearing anodised finish, which protects against the corrosion & the elements.
Features: Steerer Tube

Material: Aluminium Crown

Material: Aluminium Stanchion Tube

Material: Aluminium Lower Tube

Material: Magnesium Upper Leg Finish: Anodised Use: MTB Air Spring: Float EVOL Damper: FIT4 Adjustment: 3-position compression (Open 22 click low-speed compression, Medium & Firm modes), Rebound & Air Pressure adjust Steerer: 1 1/8"
- 1.5" tapered Axle: 15x 110mm QR Brake Mount: Disc PM 6" (160mm direct mount) Stanchion Tube Diameter: 34mm Offset: 44mm Travel: Multiple options available Remote Operated: No Lever Operated: Yes Lockout: No Wheel Size Compatibility: Mutliple options available Buy Fox Suspension Components from Chain Reaction Cycles, the World's Largest Online Bike Store.









...

Fox Suspension 34 Float Performance Forks
- Boost. Designed to offer you super-smooth performance, excellent adjustability & a
...

Fox Suspension 34 Float Performance Forks. Designed to offer you super-smooth performance, excellent adjustability & a low weight, the 34 Float Performance Forks are the ideal choice for trail riding or the XC racing enthusiast. Built to handle the abuses of modern trail riding, they’re constructed using incredibly lightweight 7000 series aluminium stanchions that boast a slick anodised coating. Equipped with Fox Suspension’s redesigned Float air spring & GRIP 3 position damper, these forks will smooth out even the roughest trails.
Features: . Spring:  Float EVOL air   Adjustments:  Compression (3 positions), rebound, air spring pressure   Damping: FIT GRIP 3-Position Lever   Coating: Anodised   Riding Style: XC, Trail Technologies: 15QR:  Don't sacrifice performance by going with a pinner skewer. Fox teamed up with Shimano to create an axle that is extremely light & stiff, in a tool-free design. You'll gain a ton of confidence when you're deep in the rocks, roots, & ruts.   Open/ Medium/ Firm:  Open/ Medium/ Firm is Fox's integrated ride dynamics system that makes it easy to set up your fork & shock to work together for unprecedented performance in all types of terrain. It's intuitive to use & can be instantly activated while riding. Just select one of three modes — Open for descending, when you want to make the most of the travel of the fork, Medium for better pedalling performance or Firm for climbing, when you want maximum stiffness.   Buy  Fox Suspension Frames & Forks from Chain Reaction Cycles, the World's Largest Online Bike Store.
...

Fox Suspension 34 Float Performance Grip Fork Designed for fast & fun MTB adventures, this off-road suspension fork delivers smooth & reliable front end shock absorption on the most demanding of trails. It features a Float EVOL air spring & a FIT GRIP damper with three positions of adjustment, so you can set it up to perfectly match your riding style as well as the terrain. Fox Suspension has also equipped this model with a lightweight yet robust chassis for a superior strength to weight ratio.
Features: Steerer Tube

Material: Aluminium Crown

Material: Aluminium Stanchion Tube

Material: Aluminium Lower Tube

Material: Magnesium Upper Leg Finish: Anodised Use: MTB Air Spring: Float EVOL Damper: FIT GRIP Adjustment: 3-position compression (Open, Medium & Firm modes), Rebound, air pressure adjust Steerer: 1 1/8-1.5" tapered Axle: 15x 100mm QR Brake Mount: Disc PM 6" (160mm direct mount)) Stanchion Tube Diameter: 34mm Offset: Multiple options available Travel: 140mm Remote Operated: No Lever Operated: Yes Lockout: No Part Numbers: 29", 51mm Offset: 910-20-968; 27.5", 44mm Offset: 910-20-987; 29", 44mm Offset: 910-20-969 Buy Fox Suspension Components from Chain Reaction Cycles, the World's Largest Online Bike Store.








...

Fox Suspension 34 Float Performance Grip Fork Designed for fast & fun MTB adventures, this off-road suspension fork delivers smooth & reliable front end shock absorption on the most demanding of trails. It features a Float EVOL air spring & a FIT GRIP damper with three positions of adjustment, so you can set it up to perfectly match your riding style as well as the terrain. Fox Suspension has also equipped this model with a lightweight yet robust chassis for a superior strength to weight ratio.
Features: Steerer Tube

Material: Aluminium Crown

Material: Aluminium Stanchion Tube

Material: Aluminium Lower Tube

Material: Magnesium Upper Leg Finish: Anodised Use: MTB Air Spring: Float EVOL Damper: FIT GRIP Adjustment: 3-position compression (Open, Medium & Firm modes), Rebound, air pressure adjust Steerer: 1 1/8-1.5" tapered Axle: 15x 100mm QR Brake Mount: Disc PM 6" (160mm direct mount)) Stanchion Tube Diameter: 34mm Offset: Multiple options available Travel: 140mm Remote Operated: No Lever Operated: Yes Lockout: No Part Numbers: 29", 51mm Offset: 910-20-968; 27.5", 44mm Offset: 910-20-987; 29", 44mm Offset: 910-20-969 Buy Fox Suspension Components from Chain Reaction Cycles, the World's Largest Online Bike Store.








...
