Octane One Void Frame. The Octane One Void Frame is a dirt-oriented frame designed to work with 26” wheels. The Void Frame is built for fun, with a reinforced top tube & seat tube junction to survive abuse from tail whips & 360’s Cr Mo Dirt Frame. The Void is an advanced frame made from high-quality double butted 4130 Cr Mo. Perfect for use with 80-100mm travel forks for park, street riding or 100-140mm travel for dirt & slopestyle riding. Comfortable. The Void Frame has a rather steep head angle with a compact rear end for quick & lively handling. Equipped with a standard threaded BB shell, you can easily fit your favourite MTB cranks & personalise your new custom build. Long, smooth tapers added at the chainstays & seatstays provide a clean finish to this Cr Mo frame

Features: Frame: Custom-butted 4130 Cr Mo Recommended Fork Travel: 80-140mm or rigid forks ~435mm Fork Compatibility: All forks with 1-1/8” (1 125”) steer tube Headtube: Integrated headset IS 42 (Campy spec 45/45 deg, OD41 8mm) Headtube Stack: 115mm Disc Brake Standard: Post mount disc brake mount BB Shell: Standard threaded 68mm (compatible with MTB cranks & BMX cranks with Euro BB) Biggest Chainring: Up to ~34t MTB Hub Spacing: 10x 135mm Disc Brake Mount: IS (International Standard) Maximum Rotor

Size: up to 185mm Tyres (Maximum Recommended): 26”x 2 35” Seatpost: 27 2mm with integrated seat clamp 3M Removable cable guides available separately No derailleur hanger Disc brake only (no V-brakes mount) Weight: ~2 51
- 2.55kg Buy Octane One Frames & Forks from Chain Reaction Cycles, the World's Largest Online Bike Store.




...

Octane One Void Frame The Void Frame from Octane One is a hardcore freestyle dirt frame that's compatible with 26" wheels, is disc brake only & features modern geometry that guarantees agile & stable performance. Suited for riding dirt jumps, skate parks & slopestyle trails, this Chromoly (Cr Mo) steel frame with 140mm max travel is versatile, playful & stylish.4130 Cr Mo Frame Ideal for Dirt Jump, Slopestyle & Skatepark The frame has a 4130 Cr Mo construction that not only ensures the utmost reliability but provides enough flex to absorb vibrations from the trail. It has been custom-butted & machined, giving it strength in all the desired places & material has been removed to save weight in non-critical areas. Also, it's intended for use with 26" wheels, providing taller or older dirt jump riders with a stable riding platform to throw your style down at the local spots.

Features:

Material: Custom Butted 4130 Chromoly Recommended Fork Travel: 80-140mm Or Rigid Forks ~435mm BB Shell: Standard Threaded 68mm (Compatible With MTB Cranks & BMX Cranks With Euro BB) Compatible With All Forks With 1 1/8” (1.125”) Steerer tube Tapered Integrated Headset (IS42/IS52) MTB Hubs Spacing (10 X 135mm) -27.2mm Seat Post / Integrated Seat Clamp Disk Brake Only (No V-brakes Mount) 3M Removable Cable Guides Available Separately No Derailleur Hanger Weight: ~2.55
- 2.58kg Buy Octane One Frames & Forks from Chain Reaction Cycles, the World's Largest Online Bike Store.




...

Octane One Void Frame The Void Frame from Octane One is a hardcore freestyle dirt frame that's compatible with 26" wheels, is disc brake only & features modern geometry that guarantees agile & stable performance. Suited for riding dirt jumps, skate parks & slopestyle trails, this Chromoly (Cr Mo) steel frame with 140mm max travel is versatile, playful & stylish.4130 Cr Mo Frame Ideal for Dirt Jump, Slopestyle & Skatepark The frame has a 4130 Cr Mo construction that not only ensures the utmost reliability but provides enough flex to absorb vibrations from the trail. It has been custom-butted & machined, giving it strength in all the desired places & material has been removed to save weight in non-critical areas. Also, it's intended for use with 26" wheels, providing taller or older dirt jump riders with a stable riding platform to throw your style down at the local spots.

Features:

Material: Custom Butted 4130 Chromoly Recommended Fork Travel: 80-140mm Or Rigid Forks ~435mm BB Shell: Standard Threaded 68mm (Compatible With MTB Cranks & BMX Cranks With Euro BB) Compatible With All Forks With 1 1/8” (1.125”) Steerer tube Tapered Integrated Headset (IS42/IS52) MTB Hubs Spacing (10 X 135mm) -27.2mm Seat Post / Integrated Seat Clamp Disk Brake Only (No V-brakes Mount) 3M Removable Cable Guides Available Separately No Derailleur Hanger Weight: ~2.55
- 2.58kg Buy Octane One Frames & Forks from Chain Reaction Cycles, the World's Largest Online Bike Store.




...

Octane One Void Frame The Void Frame from Octane One is a hardcore freestyle dirt frame that's compatible with 26" wheels, is disc brake only & features modern geometry that guarantees agile & stable performance. Suited for riding dirt jumps, skate parks & slopestyle trails, this Chromoly (Cr Mo) steel frame with 140mm max travel is versatile, playful & stylish.4130 Cr Mo Frame Ideal for Dirt Jump, Slopestyle & Skatepark The frame has a 4130 Cr Mo construction that not only ensures the utmost reliability but provides enough flex to absorb vibrations from the trail. It has been custom-butted & machined, giving it strength in all the desired places & material has been removed to save weight in non-critical areas. Also, it's intended for use with 26" wheels, providing taller or older dirt jump riders with a stable riding platform to throw your style down at the local spots.

Features:

Material: Custom Butted 4130 Chromoly Recommended Fork Travel: 80-140mm Or Rigid Forks ~435mm BB Shell: Standard Threaded 68mm (Compatible With MTB Cranks & BMX Cranks With Euro BB) Compatible With All Forks With 1 1/8” (1.125”) Steerer tube Tapered Integrated Headset (IS42/IS52) MTB Hubs Spacing (10 X 135mm) -27.2mm Seat Post / Integrated Seat Clamp Disk Brake Only (No V-brakes Mount) 3M Removable Cable Guides Available Separately No Derailleur Hanger Weight: ~2.55
- 2.58kg Buy Octane One Frames & Forks from Chain Reaction Cycles, the World's Largest Online Bike Store.




...

Octane One Warp 1 Integrated Headset Integrated headset Warp-1 came in a most popular BMX standard &8211; Campy spec 45/45. This integrated headset will fit Void 3.0 frame. Build from high quality materials & equipped with sealed bearings. Top cup & crown race made from aluminium. Star nut included. Warp 1 Integrated Headset Specifications: Integrated headset Campy spec 45/45deg, OD 41.8mm Sealed bearings 45/45 Diameter: 1.125” (1.1/8”) Alloy top cup & crown-race Weight: 65g Buy Octane One Warp 1 Integrated Headset from Chain Reaction Cycles, the worlds largest online bicycle store. ...

Octane One Warp 1 Integrated Headset Integrated headset Warp-1 came in a most popular BMX standard &8211; Campy spec 45/45. This integrated headset will fit Void 3.0 frame. Build from high quality materials & equipped with sealed bearings. Top cup & crown race made from aluminium. Star nut included. Warp 1 Integrated Headset Specifications: Integrated headset Campy spec 45/45deg, OD 41.8mm Sealed bearings 45/45 Diameter: 1.125” (1.1/8”) Alloy top cup & crown-race Weight: 65g Buy Octane One Warp 1 Integrated Headset from Chain Reaction Cycles, the worlds largest online bicycle store. ...

Octane One Warp 1 Integrated Headset The Warp-1 integrated comes in a most popular BMX standard – Campyspec 45/45. This integrated headset will fit Void, Spark & many otherframes (inc. NS Bikes frames). The crown race is CNC machined of tough 7075 aluminium & comes with a cut allowing super easy installation. For 2014 we added a new Octane one headset spacer set of 4 sizes. Top cap &star nut included. Specifications:integrated headset, sealed bearings Campy spec 45/45, OD41.8mmfor 1 1/8” steertubes 7075 alloy crown-race with a cut for easy installation Octane One spacers set included: 2mm, 3mm, 5mm, 8mmweight: h-set: ~65g + spacer set: ~20g + star-nut: ~25g Buy Octane One Warp 1 Integrated Headset from Chain Reaction Cycles, the World’s Largest Online Bike Store. ...

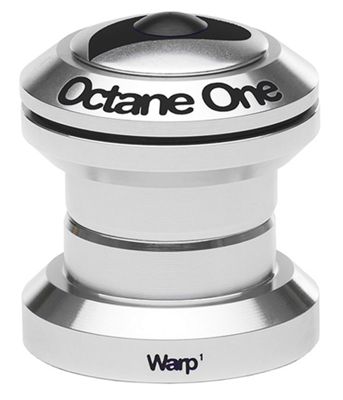

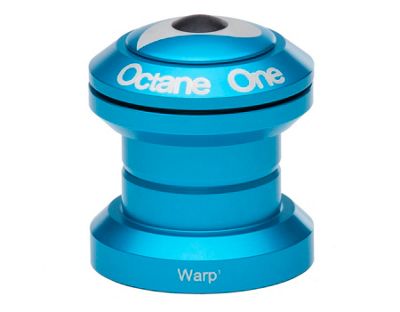

Octane One Warp 1 Sealed Headset The Warp-1 is a light headset with slim & low shape. However it&8217;s still plenty solid. Build from high quality materials & fitted with sealed bearings. The cups & top seal are made from aluminum, thicker in the places that need to be reinforced. This results in a combination of light weight & durability. Star nut included. Octane One Warp 1 Sealed Headset

Features: Sealed bearings 45/45 Diameter 1.125” (1.1/8”) Alloy cups & top cup Steel crown-race Weight: ~110g star-nut ~22g Buy Octane One Warp 1 Sealed Headset from Chain Reaction Cycles, the worlds largest online bicycle store.

...

Octane One Warp 1 Sealed Headset The Warp-1 is a light headset with slim & low shape. However it&8217;s still plenty solid. Build from high quality materials & fitted with sealed bearings. The cups & top seal are made from aluminum, thicker in the places that need to be reinforced. This results in a combination of light weight & durability. Star nut included. Octane One Warp 1 Sealed Headset

Features: Sealed bearings 45/45 Diameter 1.125” (1.1/8”) Alloy cups & top cup Steel crown-race Weight: ~110g star-nut ~22g Buy Octane One Warp 1 Sealed Headset from Chain Reaction Cycles, the worlds largest online bicycle store.

...

Octane One Warp 1 Sealed Headset The Warp-1 is a light headset with slim & low shape. However it&8217;s still plenty solid. Build from high quality materials & fitted with sealed bearings. The cups & top seal are made from aluminum, thicker in the places that need to be reinforced. This results in a combination of light weight & durability. Star nut included. Octane One Warp 1 Sealed Headset

Features: Sealed bearings 45/45 Diameter 1.125” (1.1/8”) Alloy cups & top cup Steel crown-race Weight: ~110g star-nut ~22g Buy Octane One Warp 1 Sealed Headset from Chain Reaction Cycles, the worlds largest online bicycle store.

...
