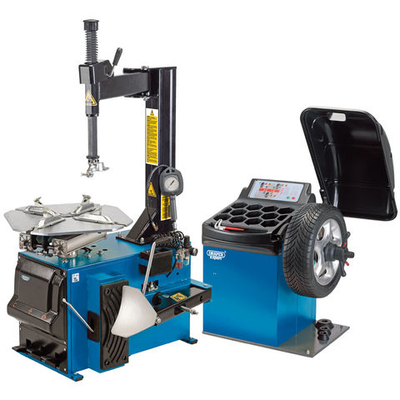

A comprehensive wheel servicing kit, consisting of a semi-automatic tyre changer & wheel balancer. The tyre changer is capable of removing & replacing tyres on wheels up to 23” & is powered by a fully motorised turntable & fitted with pneumatically operated clamping jaws & bead breaker. This enables the changing of conventional tyres quickly & easily & the bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres & rims. Each machine is attached with a self-centring four-jaw chuck guaranteeing that wheel rims are correctly clamped, & alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The semi-automatic wheel balancer is supplied with a calibration weight for easy setup & is able to balance wheels up to 65kg & 24” in diameter all with an accuracy of 1 gram. This tool is also suitable for passenger & LGV wheel/tyre combinations. Both machines are fitted with a standard 13 amp plugs for easy installation & assembly & supplied with the following accessories: 4 x centering cones, centering shaft, wheel weight pliers, hub nut & rim width calipers, tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors & inflation gun & air hose. Full self-assembly & self-installation is required. Pricing now
Includes:: delivery & installation. Wheel Balancer Specifications Balance speed 200RPM Power supply 230V Balance accuracy 1 Gram Cycle Time 8-10 seconds Max tyre diameter 43" Max tyre width 35" Rim capacity 10"
- 20" Rim width capacity 1.5"
- 20" Max weight capacity 65kg
Dimensions (guard open) 13208mm x 1016mm x 1651mm
Dimensions (guard closed) 13208mm x 965mm x 1270mm Tyre Changer Specifications Motor 0.75KW Power supply 230V Bead breaker force 2100kg Pneumatic supply 90-115psi (6-8BAR) Suitable for use on wheel width 3" to 14" For rim dia. (internal locking) 13" to 23" For rim dia. (external locking) 11" to 21" Max tyre outside diameter 40" (1000mm)
Dimensions 1740mm x 950mm x 760mm Weight 180kg
