Metal core drilling unit up to 65 mm, Powerful & very high-performance 2-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT3 tool mounting, fine adjustment & maximum functionality for flexible working in the workshop. Industry standard 3/4" Weldon Fitting. Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry & manual trades. Perfect power-to-weight ratio thanks to compact, weight-optimised design & FEIN 1, 300 W high-power motor with tacho electronics for high speed stability for reliable & economical working. With clockwise/anti-clockwise operation, electronic speed setting & a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking & reaming. Fine adjustment of the drill spindle for convenient tool alignment. Carbide core drill bit max. diameter 65mm HSS core drill max. & Oslash; 45mm Core drill, drilling depth max. 50 (75*)mm Twist drill max. & Oslash; 25mm Tapping M20 Countersinking max. & Oslash; 50mm Reaming max. & Oslash; 25mm Input 1 300W Output 730W Load speed in speed 1 120-240rpm Load speed in speed 2 260-520rpm Core drill holder Quick IN (3/4in Weldon: AU, CA, US, UK) Tool Holder MK3 Stroke 145mm Total stroke range 315mm Adjustment range for drill jigs ±6mm Swivel range for drill jigs ±7° Magnetic holding power 14000N Magnetic foot

Dimensions 205 x 95mm Cable with plug 4m Weight according to EPTA 16.1kg

...

Metal core drilling unit up to 50 mm, Lightweight, powerful & ingenious 2-speed auto magnetic core drill offering maximum efficiency & minimum physical strain for core drilling in the workshop & on the construction site. Industry standard 3/4" Weldon Fitting. Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry & manual trades. saves your valuable time & money when producing a large number of holes thanks to the digitally controlled drill feed. With clockwise/anti-clockwise operation, electronic speed setting & a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking & reaming. Thanks to reproducible & timed drilling times, working hours for commissioned & serial work can be planned. Carbide core drill bit max. diameter 50mm HSS core drill max. & Oslash; 40mm Core drill, drilling depth max. 50 (75*)mm Twist drill max. & Oslash; 18/23** mm Tapping M16** Counte rsinking max. & Oslash; 50** mm Reaming max. & Oslash; 23** mm Input 1200W Output 610W Load speed in speed 1 130-260rpm Load speed in speed 2 260-520rpm Core drill holder Quick IN (3/4 in Weldon: AU, CA, US, UK) Tool Holder MK3 Stroke 145mm Total stroke range 315mm Magnetic holding power 12500N Magnetic foot

Dimensions 195 x 90mm Cable with plug 4m Weight according to EPTA 16.2kg

...

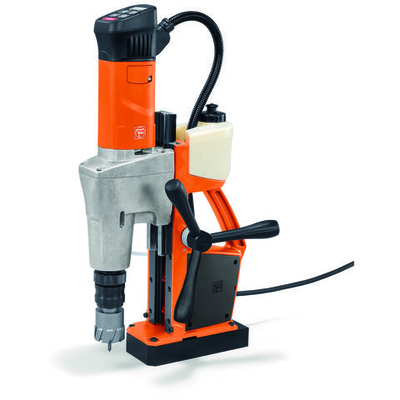

Metal core drilling unit up to 50 mm, Lightweight & powerful 2-speed universal magnetic core drill with clockwise/anti-clockwise operation & maximum functionality for flexible working in the workshop & on the construction site. Industry standard 3/4" Weldon Fitting. Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry & manual trades. Perfect power-to-weight ratio thanks to compact, weight-optimised design & FEIN 1, 200 W high-power motor with tacho electronics for high speed stability for reliable & economical working. With clockwise/anti-clockwise operation, electronic speed setting & a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking & reaming. Simple operating concept avoids mix-ups & can be clearly seen by the user. Carbide core drill bit max. diameter 50mm HSS core drill max. & Oslash; 40mm Core drill, drilling depth max. 50mm Twist drill max. & Oslash; 16 mm Tapping M16 Countersinking max. & Oslash; 31mm Reaming max. & Oslash; 16mm Input 1200W Output 640W Load speed in speed 1 130-260rpm Load speed in speed 2 260-520rpm Core drill holder Quick IN (3/4in Weldon: AU, CA, US, UK) Stroke 145mm Total stroke range 315mm Magnetic holding power 12500N Magnetic foot

Dimensions 195 x 90mm Cable with plug 4m Weight according to EPTA 13.2kg

...

Metal core drilling unit up to 50 mm, Lightweight & powerful 2-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT3 tool mounting & maximum functionality for flexible working in the workshop & on the construction site. Industry standard 3/4" Weldon Fitting. Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry & manual trades. Perfect power-to-weight ratio thanks to compact, weight-optimised design & FEIN 1, 200 W high-power motor with tacho electronics for high speed stability for reliable & economical working. With clockwise/anti-clockwise operation, electronic speed setting & a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking & reaming. Simple operating concept avoids mix-ups & can be clearly seen by the user. Carbide core drill bit max. diameter 50mm HSS core drill max. & Oslash; 40mm Core drill, drilling depth max. 50mm Twist drill max. & Oslash; 16 mm Tapping M16 Countersinking max. & Oslash; 31mm Reaming max. & Oslash; 16mm Input 1200W Output 640W Load speed in speed 1 130-260rpm Load speed in speed 2 260-520rpm Core drill holder Quick IN (3/4in Weldon: AU, CA, US, UK) Stroke 145mm Total stroke range 315mm Magnetic holding power 12500N Magnetic foot

Dimensions 195 x 90mm Cable with plug 4m Weight according to EPTA 13.2kg

...

Metal core drilling unit up to 50 mm, Lightweight & powerful 2-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT3 tool mounting & maximum functionality for flexible working in the workshop & on the construction site. Industry standard 3/4" Weldon Fitting. Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry & manual trades. Perfect power-to-weight ratio thanks to compact, weight-optimised design & FEIN 1, 200 W high-power motor with tacho electronics for high speed stability for reliable & economical working. With clockwise/anti-clockwise operation, electronic speed setting & a 315 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking & reaming. MT3 tool mounting. Simple operating concept avoids mix-ups & can be clearly seen by the user. Carbide core drill bit max. diameter 50mm HSS core drill max. & Oslash; 40mm Core drill, drilling depth max. 50 (75*)mm Twist drill max. & Oslash; 23mm Tapping M16 Countersinking max. & Oslash; 50mm Reaming max. & Oslash; 23mm Input 1200W Output 610W Load speed in speed 1 130-260rpm Load speed in speed 2 260-520rpm Core drill holder Quick IN (3/4 in Weldon: AU, CA, US, UK) Tool Holder MK3 Stroke 145mm Total stroke range 315mm Magnetic holding power 12500N Magnetic foot

Dimensions 195 x 90mm Cable with plug 4m Weight according to EPTA 13.9kg

...

Universal magnetic core drill for up to 35mm, Small & powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT2 tool mounting & maximum functionality for flexible working on the construction site. Industry standard 3/4" Weldon Fitting. Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry & manual trades. Perfect power-to-weight ratio thanks to compact, weight-optimised design & FEIN 1100W high-power motor with tacho electronics for high speed stability for reliable & economical working. With clockwise/anti-clockwise operation, electronic speed setting & a 260mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking & reaming. Input 1100W Output 550 Speed, full load 130
- 520rpm Twist drill max. & Oslash; 18mm Core drill, drilling depth max. 50 (75)*mm Tapping M14 Countersinking max. & Oslash; 31mm Reaming max. & Oslash; 18mm Carbide core drill bit max. diameter 35mm HSS core drill max. & Oslash; 35mm Core drill holder 3/4in Weldon Changing the core bit tool-free Tool Holder MK2 Stroke 135mm Total stroke range 260mm Magnetic holding power 10000N Magnetic foot

Dimensions 175 x 80mm Cable with plug 4m Weight according to EPTA 11.0kg


...

Universal magnetic core drill for up to 35mm, Small & powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation, MT2 tool mounting & maximum functionality for flexible working on the construction site. Industry standard 3/4" Weldon Fitting. Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry & manual trades. Perfect power-to-weight ratio thanks to compact, weight-optimised design & FEIN 1100W high-power motor with tacho electronics for high speed stability for reliable & economical working. With clockwise/anti-clockwise operation, electronic speed setting & a 260mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking & reaming. Input 1100W Output 550 Speed, full load 130
- 520rpm Twist drill max. & Oslash; 18mm Core drill, drilling depth max. 50 (75)*mm Tapping M14 Countersinking max. & Oslash; 31mm Reaming max. & Oslash; 18mm Carbide core drill bit max. diameter 35mm HSS core drill max. & Oslash; 35mm Core drill holder 3/4in Weldon Changing the core bit tool-free Tool Holder MK2 Stroke 135mm Total stroke range 260mm Magnetic holding power 10000N Magnetic foot

Dimensions 175 x 80mm Cable with plug 4m Weight according to EPTA 11.0kg


...

The Fein KFH 17-15R universal beveller with booster & spring technology for perfectly preparing welded seams. With a bevelling capacity of up to 15mm Preparing of seams for welding has never been easier. Using the hand held KFH17-15R portable beveller you can bevel up to 15mm ideal for welding, or add a 3mm radius to finish work neatly. Milling performance is enhanced by 30 – 80% & vastly reduced vibrations thanks to the new booster technology. Spring technology: Absorption of rotational forces & enhanced operational safety from low vibration working. Fein Ergo Grip: Unique, ergonomic concept of two handed operation for fatigue-free working. The machine is capable of bevels at 30° / 37.5° / 45° / 60° using a combination of milling heads & guide rollers. Can also cut a 3mm radius at 45° with the relevant milling heads & guide roller. FEIN high-power motor. Soft start for safe handling from the word go. Spring Technology. Restart Protection. Speed Preselection. Quick-change cutter system. Blockage Monitoring. Booster Technology. The Machine is supplied without a milling head, guide roller or cutters to allow you to add those needed for your job. ...

The Fein KFH 17-8R universal beveller with booster technology for perfectly preparing welded seams. With a bevelling capacity of up to 8mm Preparing of seams for welding has never been easier. Using the hand held KFH17-8R portable beveller you can bevel up to 8mm ideal for welding, or add a 3mm radius to finish work neatly. Milling performance is enhanced by 30 – 80% & vastly reduced vibrations thanks to the new booster technology. Fein Ergo Grip: Unique, ergonomic concept of two handed operation for fatigue-free working. The machine is capable of bevels at 30° / 37.5° / 45° / 60° using a combination of milling heads & guide rollers. Can also cut a 3mm radius at 45° with the relevant milling heads & guide roller. The Machine is supplied without a milling head, guide roller or cutters to allow you to add those needed for your job. FEIN high-power motor. Soft start for safe handling from the word go. Restart Protection. Speed Preselection. Quick-change cutter system. Blockage Monitoring. Booster Technology. Machine comes with 3 year warranty ...

Bevel for non-ferrous metals & soft materials (aluminium, copper, plastics, . .). ...
