The Record Power TS315/UK1 10/12" Cast Iron Saw with Sliding Beam & Scoring features a cast iron motor housing & unit that sits within two cast iron trunnions. The trunnions are machined for accuracy & mounted on top of the frame as opposed to mounted on the table. This feature provides accuracy, rigidity & longevity. Separate handweels operate the rise & fall of the blade & the tilting mechanism & operate on sturdy steel lead screws with rolled ACME threads for smooth action. There is a large cast table which is surface ground to ensure a smooth, flat finish. The fence is a cast iron mount with cam locks & fine adjustment, mounted to a steel bar for rock solid performance. The machine has a maximum ripping capacity of 910mm which can be extended to 1250mm with the optional right hand extension kit (not included). The quiet induction motor is a generous 3HP & drives the 10" saw blade & 80mm scoring blade with ease. Scoring is belt driven & can be adjusted from the top of the table to provide a clean cut with minimal break out on veneered sheets & boards. The scoring blade can be removed to allow a 12" blade to be fitted, increasing the maximum cutting depth capacity to 100mm
- a very useful feature when ripping solid timber. Sliding Beam Blade Tilt up to 45° Cast Iron Table Cast Iron Fence Mount Cam Lock Fence Fence Micro-Adjustment Cast Iron Saw Unit Maximum Blade

Size: 315 mm Blade Bore: 30 mm Scoring Blade

Size: 80 mm Scoring Blade Bore: 20 mm Blade Speed: 4000 rpm Maximum Rip Capacity: 915 mm Maximum Rip with Right Hand Extension: 1250 mm Sliding Carriage Stroke: 1250 mm Blade Tilt: 0
- 45 degrees Maximum Depth of Cut 90 degrees: 100 mm Maximum Depth of Cut 45 degrees: 76 mm Table Height from Floor: 895 mm Motor: 3HPWeight: 315kg





...

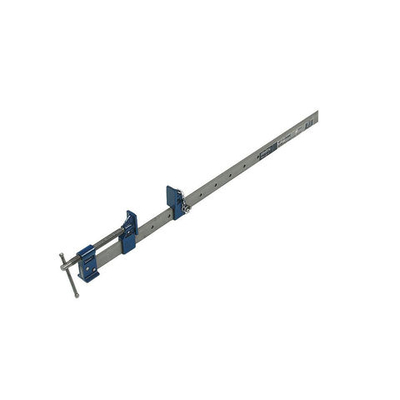

This Record 1200mm (48") Sash Cramp has slides & heads constructed from tough SG iron, the slide is secured by a solid steel pin that passes through the locating holes. The clamp has flat-bottomed slides & heads, meaning it can stand up without support. The main steel screw quickly & easily applies pressure whilst remaining smooth in operation. ...

This Record 1800mm (70") Sash Cramp has slides & heads constructed from tough SG iron, the slide is secured by a solid steel pin that passes through the locating holes. The clamp has flat-bottomed slides & heads, meaning it can stand up without support. The main steel screw quickly & easily applies pressure whilst remaining smooth in operation. ...

A full size woodworkers vice with precision machined grey cast iron body & front plate, solid steel guide rods & built in 'dog' to allow over sized items to be clamped to the work bench (when used against a bench stop). ...

This Record 600mm (23") Sash Cramp has slides & heads constructed from tough SG iron, the slide is secured by a solid steel pin that passes through the locating holes. The clamp has flat-bottomed slides & heads, meaning it can stand up without support. The main steel screw quickly & easily applies pressure whilst remaining smooth in operation. ...

Record 3” Mechanics Vice Fibre Grips use for holding & protecting Copper, Aluminium, Brass or similar soft metals. The grips are pressed steel with fibre faces which clip on to the vice jaws. ...

Record 4” Mechanics Vice Fibre Grips use for holding & protecting Copper, Aluminium, Brass or similar soft metals. The grips are pressed steel with fibre faces which clip on to the vice jaws ...

Record 5” Mechanics Vice Fibre Grips use for holding & protecting Copper, Aluminium, Brass or similar soft metals. The grips are pressed steel with fibre faces which clip on to the vice jaws ...

Record 6” Mechanics Vice Fibre Grips use for holding & protecting Copper, Aluminium, Brass or similar soft metals. The grips are pressed steel with fibre faces which clip on to the vice jaws ...

A professional 4" cast iron vice for use in garages, workshops & factories. Designed for fixed position bench mounting, it has hardened steel jaws & quick acting main screw. ...
